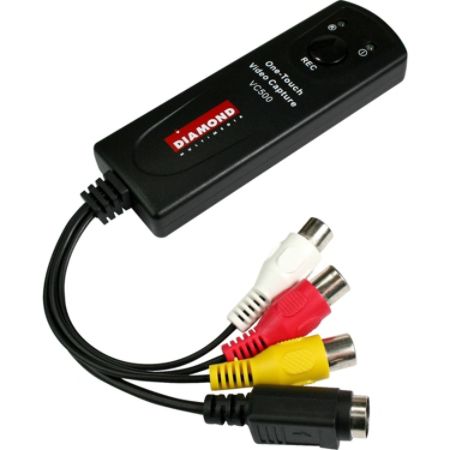

Diamond VC500 1-Touch Video Capture Device Item # 948235
Share
-
Email This Page
- Note: You can share Individual Items, entire Shopping Carts, and Shopping Lists.
-
Share this Item
Close
Print
948235
was removed.
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Description
Capture videos with the touch of a button with the One Touch video Capture VC500. The VC500 can capture video and audio from almost any video device, such as VCR, Camcorder, DVD player, or any device supporting video output through an S-Video or composite RCA connection.
- 256MB memory lets you record multiple shows.
- NTSC/PAL video standards lets you capture video from most televisions. Preserve your VHS tapes with 1 touch.
- Create and stream your own videos, or upload them to social media sites.
- MPEG 4/2/1 video capturing formats offer flexible recording options.
- Composite RCA or S-video inputs.
- JPG or BMP formats for still image capturing.
- Burn support files to DVD/VCD. Software included to burn full-screen video captures and to edit and create DVDs.
Product Details
| Item # | 948235 |
| OfficeMax # | 23608883 |
| Manufacturer # | VC500 |
| software included | yes |
| TV signal support | NTSC; PAL |
| plug and play | yes |
| remote control included | no |
| System Requirements | Intel or AMD CPU 1.4Ghz or faster; 256 MB System RAM; Available USB 2.0 port; CD-ROM drive; 300MB Hard Disk Space; 600MB to 3GB per 1 Hour of Recording; Operating Systems:Microsoft Windows XP SP2; Microsoft Windows Vista; Microsoft MCE |
| video formats | MPEG-1; MPEG-2; MPEG-4; S-Video |
| required hard drive space | 300MB MB |
| package contents | VC500 One Touch Video Capture Device; RCA Audio/Video Cable (Yellow, Red & White); Driver Installation & burning CD; Quick Start Guide |
| Product Name | VC500 One Touch Video Capture Device |
| manufacturer | Diamond Multimedia |
| Host Interface | USB |
| video output | USB 2.0 |
| Frame Rate | 30 fps; 25 fps |
| brand name | DIAMOND |
| maximum resolution | 720 x 576 |
| video capture capability | yes |
| dimensions | 6.3"H x 9.6"W x 2"D |
| functions | Video Editing |
| operating system compatibility | Windows XP Service Pack 2; Windows Vista; Windows 8 |
| minimum CPU requirements | 1.4GHz |
| video input | composite video; S-video |
| Platform Supported | PC |
| form factor | External |
| warranty length | 1-year limited |
| model name | S6775302 |
| internal/external | External |
| Show More ▾ |
Customer Reviews
Rated 4 out of 5�by 1
reviewer.
Rated 4 out of 5�by Persistant Nice basic equipment
After a few tries of putting VHS signals into the computer, I finally read on the internet, info about how to keep the sound synchronized with the picture. I used the separate editing software included, to capture the VHS signal, instead of the Diamond software. The other software has capture, edit, and produce (record a DVD) functions. So one doesn't need to use the button on the device to capture their recordings from tape. I tried this on two computers and three DVD writers before I found what would make a good DVD. I don't know yet how to have separate chapters on one DVD. Everything comes out as one long recording so far. I try to record things in no more than 80 minute segments, then edit them together. Be careful while editing. If you press the wrong button, there is no undo nor redo button. I have had to redo a long segment to get things right.
Included instructions are not complete enough. Tape glitches and poor signals can cause the recording into the computer to stop, because it thinks the signal is copy-protected. I had to re-do some short sections and edit them all together before burning the DVD.
One can also record into the computer, the over the air broadcast TV through a digital decoder.
December 13, 2015
